KUBOTA L-series Tractor offer powerful high cultivation performance and standard for professional agricultural business from wet field to dry field. Every Kubota diesel engine tractor series are well-equipped with operators friendly driving system. Various kind of special attachments are available to fit.

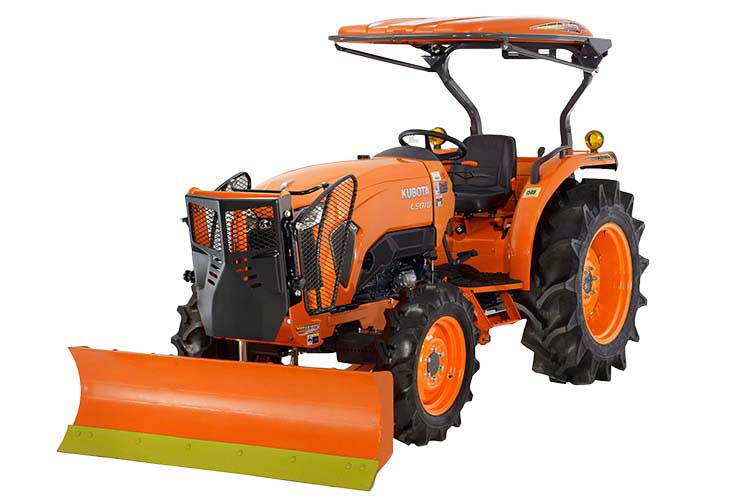

| Model | L3218 | L4018 | L5018 |
|---|---|---|---|
|
Weight (kg) |
1255 (Not include Dozer Weight) |
1275 (Not include Dozer Weight) |
1490 (Not include Dozer Weight) |
|
Overall length x Width (mm) |
2920 x 1337 |
2920 x 1422 |
3200 x 1495 |
|
Minimum ground clearance (mm) |
300 |
355 |
400 |
|
PTO / Engine speed (rpm) |
540/750 |
540/750 |
540/750 |
|
Transmission |
Gear shift, 8 forward and 8 reverse |
Gear shift, 8 forward and 8 reverse |
Gear shift, 8 forward and 8 reverse |
|
Steering |
Integral type power steering |
Integral type power steering |
Integral type power steering |
|
Fuel tank (L) |
40 |
40 |
48 |
|
Engine Horse Power |
32 |
40 |
50 |
|
Engine Type |
Kubota D1803
Vertical 4-cycle liquid cooled diesel, 3 cylinders diesel engine |
Kubota D1803
Vertical 4-cycle water-cooled diesel, 3 cylinders diesel engine |
Kubota V2403-M-DI
Vertical 4-cycle water-cooled diesel, 4 cylinders diesel engine |
|
Driving System |
4 Wheels Drive |
4 Wheels Drive |
4 Wheels Drive |
|
Tires Front x Rear (mm) |
7-16 x 11.2-24 |
8-16 x 12.4-24 |
8-18 x 13.6-26 |
|
Warning Signal System |
Engine Heat, Engine Oil Pressure, Battery Charging, Diesel Alert |
Engine Heat, Engine Oil Pressure, Battery Charging, Diesel Alert |
Engine Heat, Engine Oil Pressure, Battery Charging, Diesel Alert |
|
Starting system |
Starter Motor |
Starter Motor |
Starter Motor |
|
Fuel Consumption per acre (lit) (with RX) |
2.68 |
3.05 |
3.05 |
|
Hourly rate of work done (acres) (with RX) |
1.01 |
1.22 |
1.4 |
Note – Depending on the condition of the trailer implements used and the skill of the user, fuel consumption and work rate may vary.
