KX Series (3.3 tons) Mini Excavators are most suitable for city development sites, agricultural sites and roads and bridges construction sites.
About Kubota 3.3 Tons
2 modes of RPM can be chosen according to your work requirement.
Third line hydraulic return system protects the hydraulic system from damaging by filtering the contaminants in the circulating hydraulic oil by flowing it back to the reservoir.
The accumulator lets the hydraulic to push the air out just by turning the key without having to start the engine and can let the boom down in emergency cases.
KX Series’ compact design is suitable for city development work and construction sites.

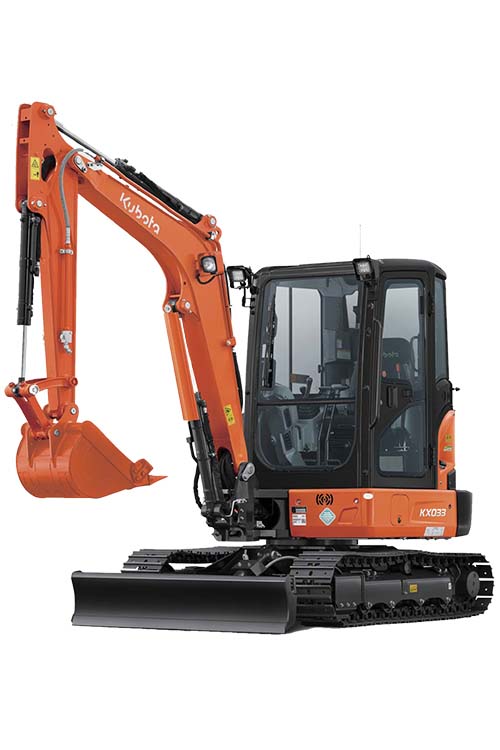

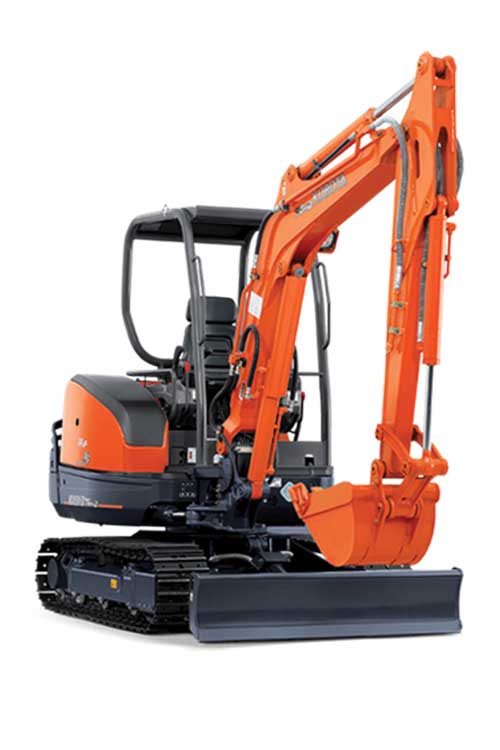

| Model | KX91-3S2 | KX033-4 |
|---|---|---|
|
Tons
|
3.3 |
3.3 |
|
Cabin Type |
Canopy |
Canopy / Cabin |
|
Weight (kg) |
3225 |
3465 |
|
HP |
29.6 |
27.5 |
|
Engine |
Kubota D1703-M-BH-TH1 |
Kubota D1703M-DI-E4 |
|
Fuel Tank Capacity (lit) |
50 |
47 |
|
Max. digging height(mm)
|
4935 |
4970 |
|
Max. digging depth(mm) |
3180 |
3110 |
|
Bucket Capacity M³ |
0.1 |
0.11 |
|
Blade (mm) |
1550X 335 |
1550 X 345 |
